IL-TY-TSH-5X

INLINE INTERCHANGEABLE KIT

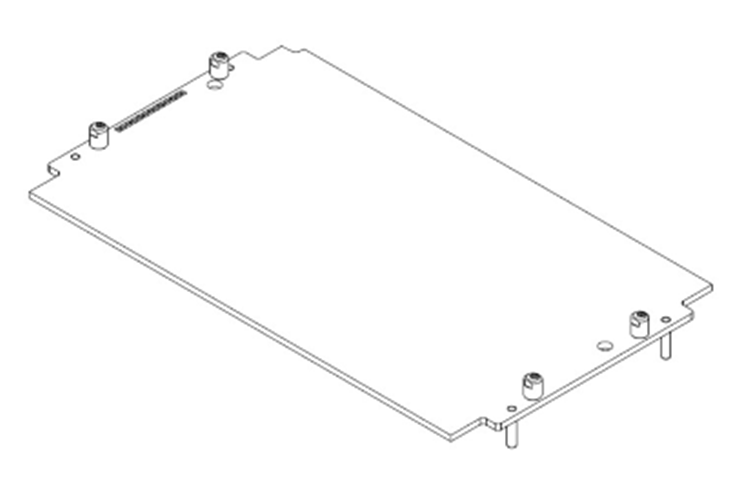

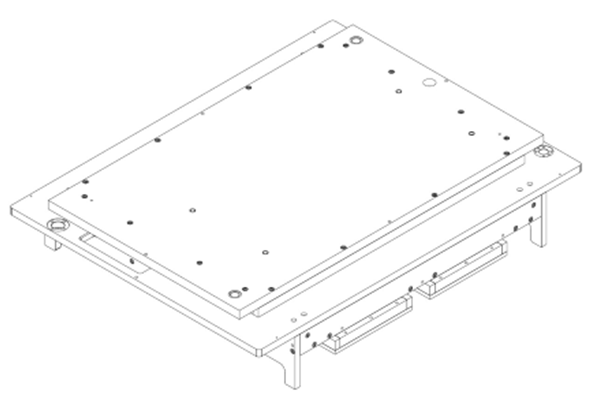

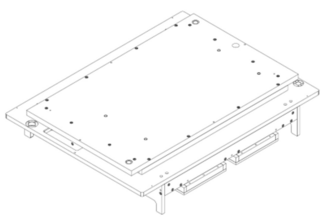

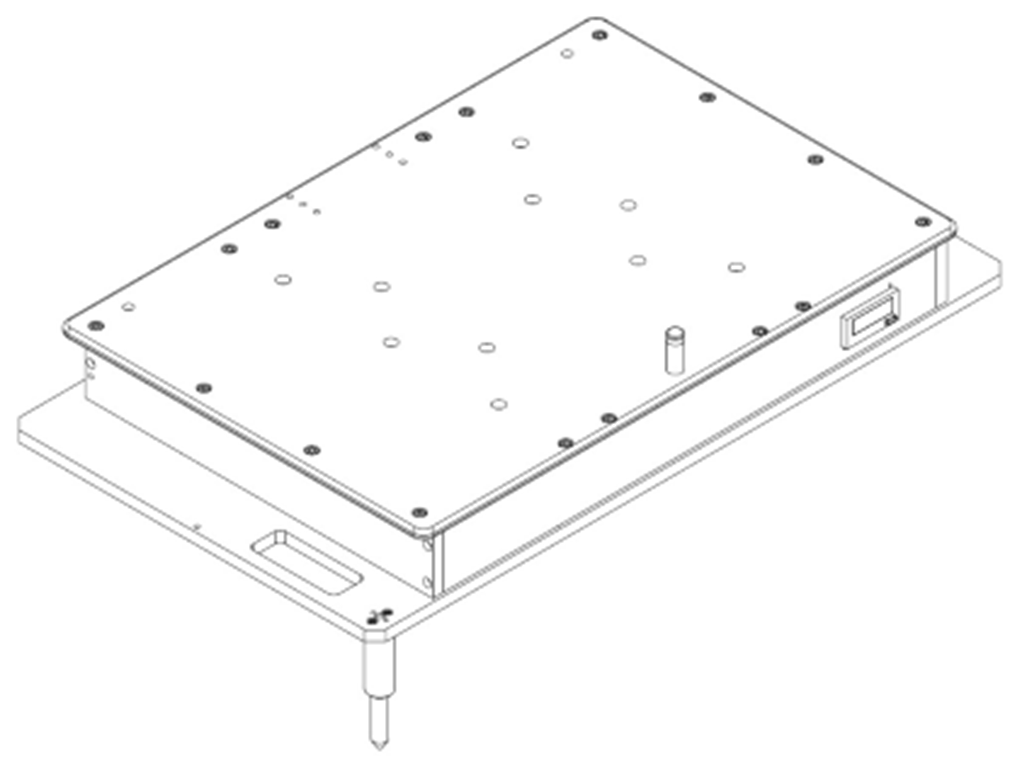

Modular interchangeable kits for Teradyne inline test system TSH-5X (TSH-51 und TSH-52) consisting of top/pressure plate (AP), moving plate (PAP) and bottom/probe plate (KTP).

• Outer dimension: 500x700x450 mm
• Useable area: 450x340 mm
• Weight: 19 kg
• Prüfart / Anwendung: Inline
• Test type: TSH 5X (TSH-51 / TSH-52)

Suitable interfaces

• Standard interface: TY-TSH-5x-IF-1280; quantity: 1x or 2x
• HD-interface: TY-TSH-5x-IF-2580-HD;quantity:1x or 2x
• Optical interface: ODU; quantity 2x top and 1x bottom

Integration into a test system for an increased test piece throughput
Compatible with HD and NON-HD interfaces
Easy installation possible by one person only
Floating top connection
Telescopic stay for safe opening
Preparation cutout for the integration of an electronic counter
Stainless steel reinforcement
Three floating ID blocks (1x top and 2x bottom)
