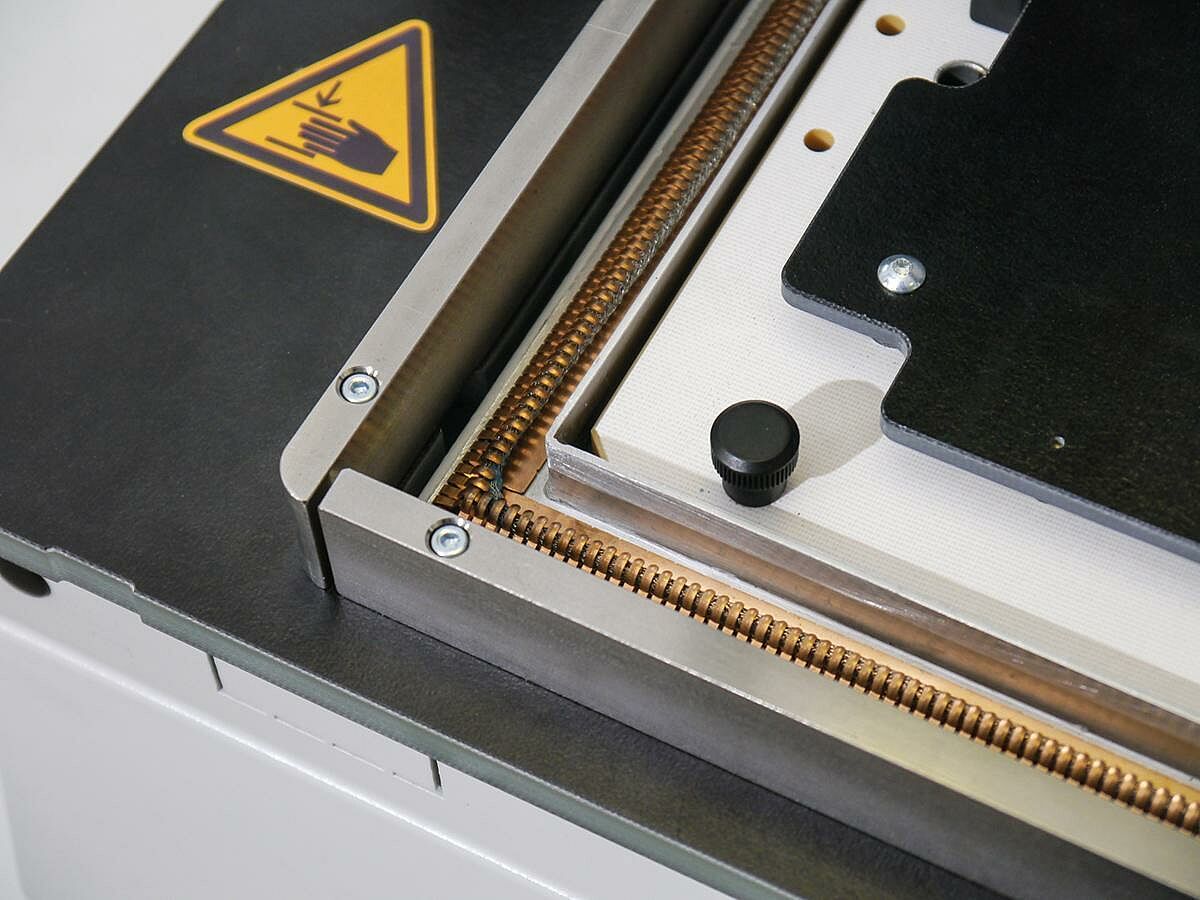

The WA-HF-8000 has a modular design and guarantees full shielding of internal and external HF signals. The test fixture is designed for acoustic and optics tests, among other things. It is a pneumatic fixture type with parallel pressure mechanism, which enables flexible use through automation functions.
Ergonomic design for high ease of use
No manual effort due to pneumatic drive
Interference-free test applications possible in the frequency range from 100 MHz to 6 GHz
Automatic open/close function optionally available
Interchangeable kit available separately: WS-800
Raise of housing sold separately: MFG-700- Gehäuseerhöhung-90
Horizontal position module allows use of cameras
External interface according to customer requirements (Mac Panel, ODU, Pylon, VPC and many more)
Detailed technical specifications are available in the following PDF file.
