WA-M-1200

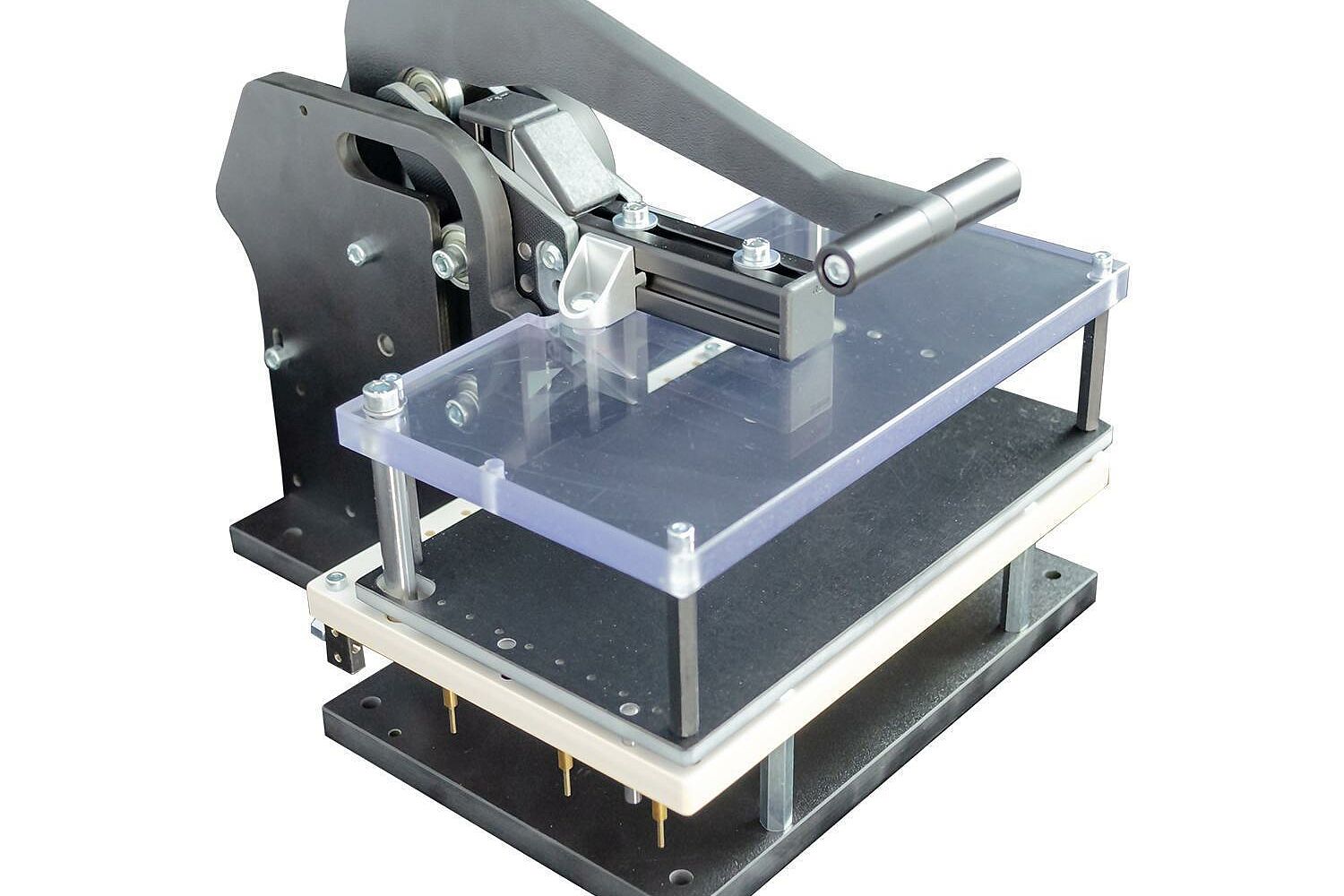

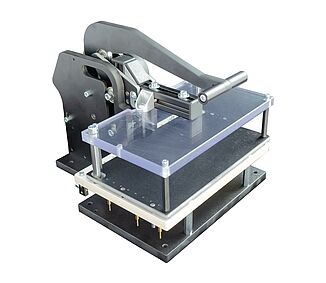

Mechanical test fixture

Small mechanical test fixture with parallel closing pressure mechanism. Suitable for testing small series or laboratory applications. The modular design offers maximum flexibility and the sophisticated modular system enables individual expansion according to customer requirements.

•     External dimensions: 250x190x190 mm
•     Usable area: 160x100 mm
•     Weight: 4kg
•     Parallel stroke: 12 mm
•     Type of test / application: ICT, FCT

Optional locking by electric magnet
External interface is made according to customer requirements.

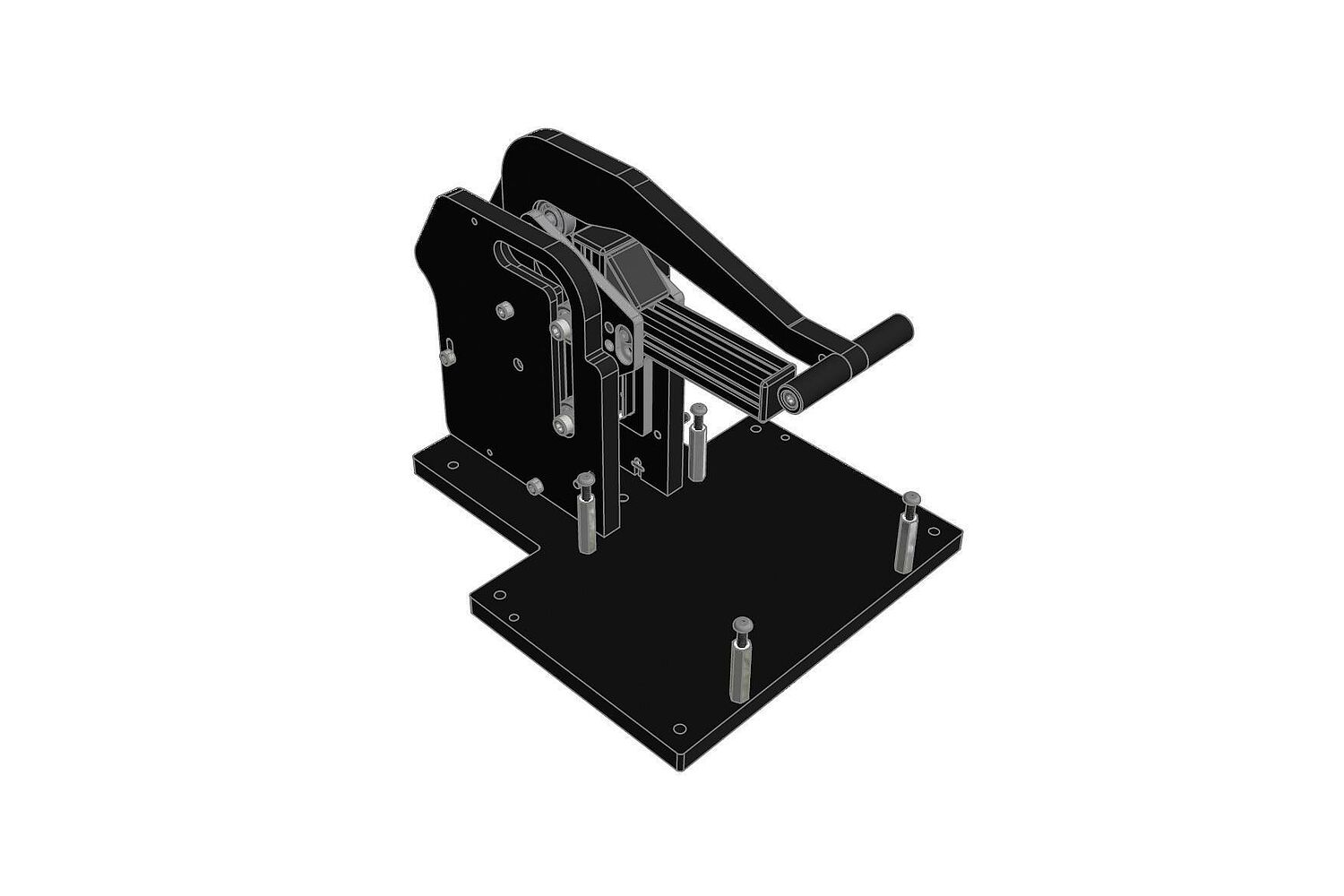

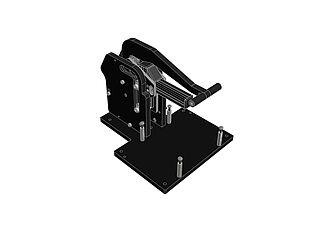

Interchangeable kit available separately: WS-1200

Product line includes

• WA-M-1200
• WA-M-1250
• WA-M-1251
• WA-M-1251-T
