WA-M-1500

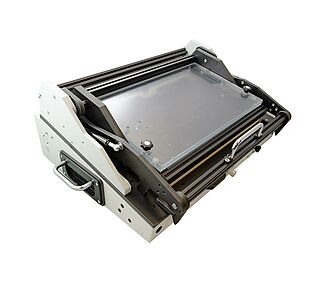

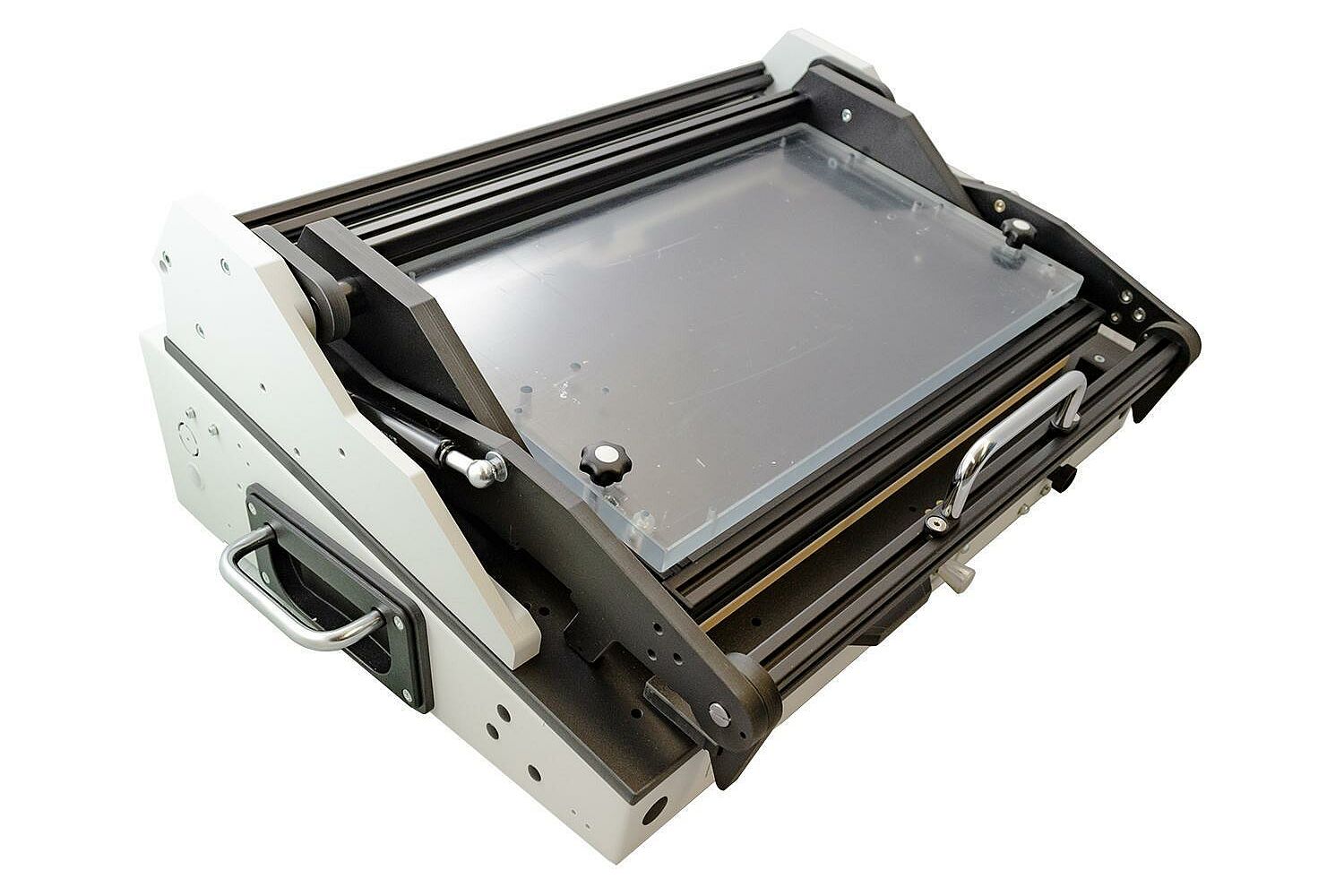

Mechanical test fixture / interchangeable fixture

Mechanical test fixture with parallel closing pressure mechanism. Suitable for testing individual applications and series testing. The modular design offers maximum flexibility and the sophisticated modular system enables individual expansion according to customer requirements.

•     External dimensions: 530x450x240 mm
•     Usable area: 350x230 mm
•     Weight: 16kg
•     Parallel stroke: 18 mm
•     Type of test / application: ICT, FCT

Compatible with pneumatic fixture WA-P-3000
Interchangeable kit available separately: WS-00
Different housing elevations available separately:

• MFG-530-Gehäuseerhöhung-45
• MFG-530-Gehäuseerhöhung-90

Internal interface standard system: 96-pin VG strips, 192 test points, expandable to 384
Fixture also available with internal pylon interface: WA-M-1500-I

External interface according to customer requirements (ODU, VPC, Mac Panel, Pylon and many more)

Product line includes

• WA-M-1500
• WA-M-1500-I
• WA-M-1501
• WA-M-1501-I
• WA-M-1501-I-T
• WA-M-1501-T
• WA-M-1510
• WA-M-1510-I
• WA-M-1511
• WA-M-1511-I
• WA-M-1511-I-T
• WA-M-1511-T
