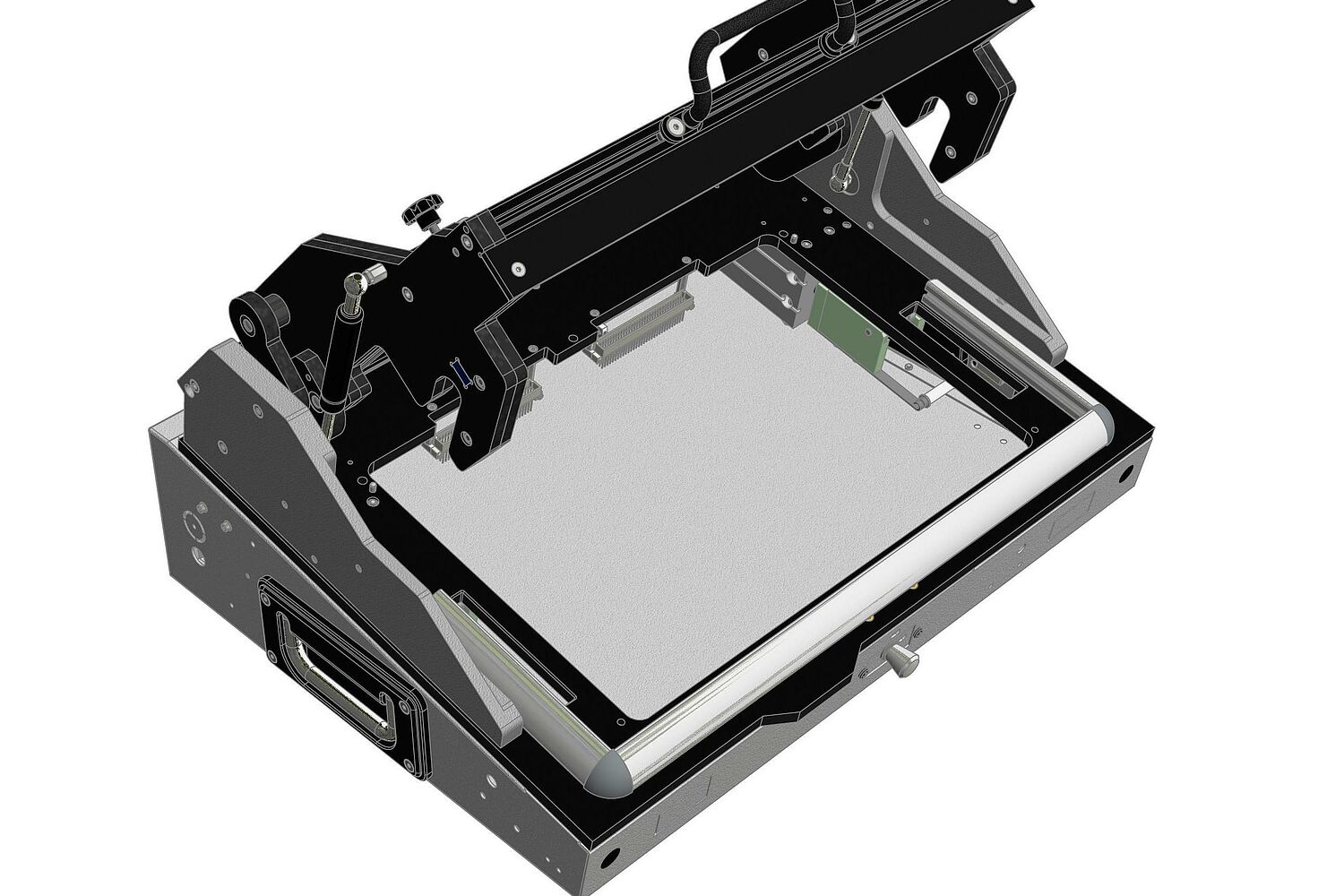

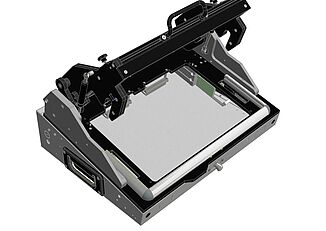

WA-P-3000

Pneumatic test/interchangeable fixture

This pneumatic interchangeable fixture with parallel-closing pressure mechanism is particularly suitable for series tests. The pneumatic drive (24V/6bar) replaces any manual effort and the ergonomic design enables gentle, optimal operation of the test fixture. The modular structure and a sophisticated building block system offers maximum flexibility and enables individual expansion according to customer requirements.

•     Contact force: up to 600 N
•     External dimensions: 530x450x240 mm
•     Usable area: 350x230 mm
•     Weight: 18kg
•     Parallel stroke: 18 mm
•     Type of test / application: ICT, FCT

All types of contact possible
Maximum safety thanks to integrated finger protection

Compatible with mechanical fixture WA-M-1500
Interchangeable kit available separately: WS-00
Different housing elevations available separately:

• MFG-530-Gehäuseerhöhung-45
• MFG-530-Gehäuseerhöhung-90

Internal interface standard system: 96-pin VG strips, 192 test points, expandable to 384
Fixture also available with internal pylon interface: WA-P-3000-I

External interface according to customer requirements (ODU, VPC, Mac Panel, Pylon and many more)

Product line includes

• WA-P-3000
• WA-P-3000-I
• WA-P-3001
• WA-P-3001-I
• WA-P-3010
• WA-P-3010-I
• WA-P-3011
• WA-P-3011-I
• WA-P-3011-T
• WA-P-3011-I-T
