WA-P-3000-I

Pneumatic test/interchangeable fixture

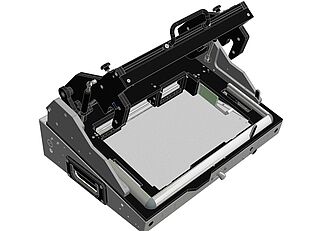

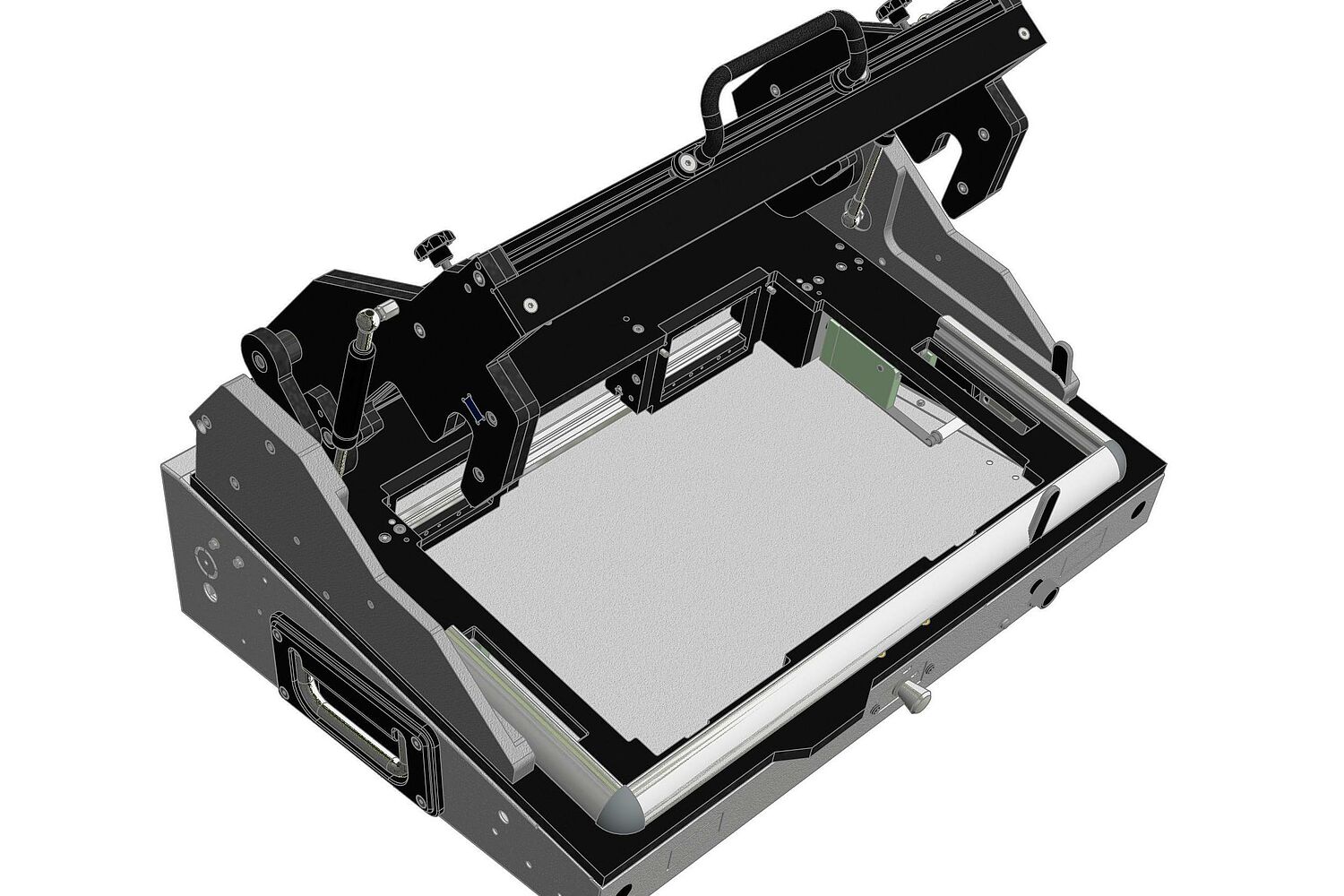

This pneumatic interchangeable fixture with parallel-closing pressure mechanism is particularly suitable for series testing. The pneumatic drive (24V/6bar) replaces any manual effort and the ergonomic design enables gentle, optimal operation of the test fixture. The modular structure and a sophisticated building block system offers maximum flexibility and enables individual expansion according to customer requirements.


  •     Contact force: up to 600 N
  •     External dimensions: 530x450x240 mm
  •     Usable area: 330x180 mm
  •     Weight: 18kg
  •     Parallel stroke: 18 mm
  •     Type of test / application: ICT, FCT

All types of contact possible
Maximum safety thanks to integrated finger protection

Compatible with mechanical fixture WA-M-3000-I
Interchangeable kit available separately: WS-00-I
Different housing elevations available separately:

  • MFG-530-Gehäuseerhöhung-45
  • MFG-530-Gehäuseerhöhung-90

Internal interface I system: CONTACT PIN interface for a maximum of 6 interface blocks
Fixture also available with internal standard VG interface: WA-P-3000

External interface according to customer requirements (ODU, VPC, Mac Panel, Pylon and many more)

Product line includes

WA-P-3000-I

Technical data

Series WA-P-30

Detailed technical specifications are available in the following PDF file.
